L&W  |  SKU: 011186

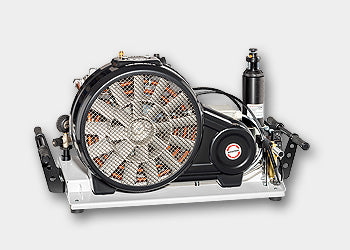

LW 150 E MC

$13,600.00


A Dive Shop for Divers and Adventure Seekers

Whether you're a beginner or an experienced diver, we have the perfect adventure for you!

Florida Shore Diving Hot Spot

Gold Coast Scuba is located in Lauderdale-By-The-Sea, which is the shore diving capital of the USA!

Shop with Gold Coast SCUBA and see how our integrity and quality of products makes every dive better!

Descripción

This new compressor series is the perfect solution for dive centers, ships, boats and places with limited space and convince with a brand new and powerful compressor block.

An innovative characteristic based on the new Motion Link design allows a very slim design. Customers can choose between three different models and delivery rates of 150 l/min, 200 l/min or 250 l/min. These compressors are designed for a long lifetime and continuously operations, the ideal machine for smaller stationary applications. Long maintenance intervals guarantee extremely low maintenance costs.

With a small and handy frame these compressors are highly predestined for mobile breathing air applications.

Specifications
  • Electro motor (Standard: 400V, 3 phase, 50Hz)
  • Power cable and plug
  • Lightweight steel frame
  • Ergonomic nopped handles
  • Start / Stop switch c/w phase selector function
  • Manual condensate drain
  • 1 x Filling hose c/w filling valve and pressure gauge
  • Pressure maintaining and non return valve
  • All pistons c/w steel piston rings
  • Oil- / Water separators after 2nd and 3rd stage
  • Safety valves after each stage
  • 3 x concentric suction/pressure valves
  • Filling pressure to your choice (200 or 300 bar)
  • Connections to your choice (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
  • Breathing air purification in accordance to EN 12021
Options
  • Automatic condensate drain
  • Automatic stop at final pressure
  • Additional filling hoses c/w filling valves
  • Auto start system
  • Phase monitoring c/w shut down at wrong direction of rotation
  • Switch over device 200/300 bar
  • Hour counter
  • Intermediate pressure gauges
  • Cylinder head temperature monitoring with auto shut down
  • Low pressure oil pump
  • Puracon filter monitoring (Auto shut down also available)
  • Remote control box
  • Additional high pressure outlet
  • Special voltages / frequencies on request

Although products may be listed as out of stock or unavailable on the store page, please call the number below to check availability of L&W compressors and see what options are possible for shipping.

(954) 616-5909

Type: Air cooled piston compressor
Capacity [l/min] / [Nm³/h] / [cfm]: 150 / 9 / 5.3
Max. Pressure [bar]: 350
RPM [1/min]: 1425
No of cylinders / No of stages: 3 / 3
Prime mover type: E-Motor / 400V / 3 Phase / 50-60 Hz
Drive power [kW] with 50 Hz / 60 Hz: 3.5 / 4.2
Cooling air req. [m³/h] with 50 Hz / 60 Hz: 1050 / 1260
Lubrication type: Splash oil
Oil capacity [l]: approx. 0.8
Operating temperature [°C]: +5°C to +45°C
Filter capacity [m³ at +20°C]: 108 (approx. 12 h) / optional 500 (approx. 55 h)
Dimensions W x D x H [mm]: 1060 x 500 x 580
Weight [kg]: 94
Noise level (measured at 1 m) [dB(A)]: 84
