L&W  |  SKU: 002018

LW 100 B

$6,399.99


A Dive Shop for Divers and Adventure Seekers

Whether you're a beginner or an experienced diver, we have the perfect adventure for you!

Florida Shore Diving Hot Spot

Gold Coast Scuba is located in Lauderdale-By-The-Sea, which is the shore diving capital of the USA!

Shop with Gold Coast SCUBA and see how our integrity and quality of products makes every dive better!

Descripción

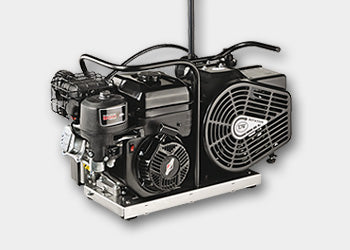

The LW 100 B is a extremely light, robust and reliable breathing air compressor.

It is designed for mobile use and impresses with its flexibility and low maintenance and service costs. The compressor is seawater resistant due to the powder coated compressor block and the stainless steel frame. The LW 100 B convince our worldwide customers with its high quality „Made in Germany“. The hardened cylinder liners and the steel piston rings in all compressor stages ensure a long lifetime without loss of performance.

Specifications
  • Petrol compressor c/w pull start and auto cut off at low oil level
  • Stainless steel frame
  • Manual condensate drain
  • Pressure maintaining and non return valve
  • 1x Filling hose c/w filling valve and pressure gauge
  • Intermediate coolers
  • Oil- / Water separators after 2nd and 3rd stage
  • Safety valves after for each stage
  • Pistons c/w steel piston rings
  • Filling pressure to your choice (200 or 300 bar)
  • Connections to your choice
    (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
  • Breathing air purification an accordance to EN 12021
Difference to the ECO-Model
  • Stainless steel frame (ECO: alloy)
  • Inclusive the carrying handles
  • Painted compressor block
  • Inclusive filling valve holder
Options
  • Additional filling hose c/w filling valve
  • Automatic stop at final pressure c/w hour counter
  • Switch over device for 200 or 300 bar
  • Conversion set: Petrol-/electro version
  • Honda Motor (4.1 kW) instead of the Briggs & Stratton Motor
  • Trolley





Although products may be listed as out of stock or unavailable on the store page, please call the number below to check availability of L&W compressors and see what options are possible for shipping.

(954) 616-5909

Type: Air cooled piston compressor
Capacity [l/min] / [Nm³/h] / [cfm]: 100 / 6 / 3.5
Max. Pressure [bar]: 330
RPM [1/min]: 2300
No of cylinders / No of stages: 3/3
Prime mover type: 4 stroke drive motor
Drive power [kW]: 4.5
Cooling air requirement [m³/h]: 1350
Lubrication type: Splash oil
Oil capacity [l]: 0.5
Operating temperature [°C]: +5°C to +45°C
Filter capacity [m³ at +20°C]: 86 (approx. 16 h)
Dimensions W x D x H [mm]: 780 x 380 x 400
Weight [kg]: 43
Noise level (measured at 1 m) [dB(A)]: 93
