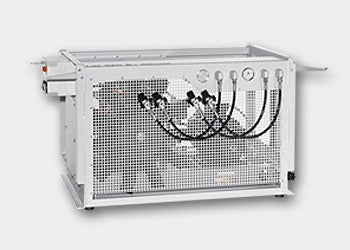

LW 320 E AL Nautic
Description
Description
The LW 320 E Al Nautic is designed for mobile use but also suitable for stationary applications.
It can optionally be used as a fully automatic stationary system by adding the available extras. It comes fully wired with star/delta system and with a lightweight and seawater resistant aluminum frame.
Specifications
- Electro motor (E-Motor / 400V / 3 Phase / 50 Hz)
- Seawater resistant aluminum-frame (Colour: RAL 9006)
- Crash frame c/w 4 carrying handles and sling eyes
- Hour counter and integrated pressure gauge
- Manual condensate drain
- 4x Filling hose c/w filling valve
- Pressure maintaining and non return valve
- All pistons c/w steel piston rings
- NEW - Improved lubrication system with adjustable oil pump
- Low pressure oil pump with oil sieve
- Oil- / Water separators in stainless steel
- Safety valves after each stage
- Filling pressure to your choice (200 or 300 bar)
- Connections to your choice
(DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT) - Breathing air purification an accordance to EN 12021
Options
- Automatic condensate drain
- Automatic stop at final pressure
- Auto start system
- 200 and 300 bar parallel filling pressures
- Additional high pressure outlet
- Oil pressure gauge
- Wheel set
- Special voltages / frequencies on request
Although products may be listed as out of stock or unavailable on the store page, please call the number below to check availability of L&W compressors and see what options are possible for shipping.
(954) 616-5909
| Type: | Air cooled piston compressor |
| Capacity [l/min] / [Nm³/h] / [cfm]: | 320 / 19.2 / 11.3 |
| Max. Pressure [bar]: | 350 |
| RPM [1/min]: | 1580 |
| No of cylinders / No of stages: | 3 / 3 |
| Prime mover type: | E-Motor / 400V / 3 Phase / 50 Hz |
| Drive power [kW] with 50 Hz / 60 Hz: | 7.5 / 9.0 |
| Cooling air req. [m³/h] with 50 Hz / 60 Hz: | 2250 / 2700 |
| Lubrication type: | Oil pump + Splash oil |
| Oil capacity [l] / Oil pressure [bar]: | 1.8 / 1.8 (+/- 0.3) |
| Operating temperature [°C]: | +5°C to +45°C |
| Filter capacity [m³ at +20°C]: | 900 (approx. 46 h) |
| Dimensions W x D x H [mm]: | 1290 x 600 x 740 |
| Weight [kg]: | 175 |
| Noise level (measured at 1 m) [dB(A)]: | 83 |
