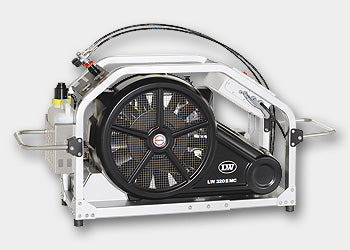

LW 320 E MC

$21,800.00


A Dive Shop for Divers and Adventure Seekers

Whether you're a beginner or an experienced diver, we have the perfect adventure for you!

Florida Shore Diving Hot Spot

Gold Coast Scuba is located in Lauderdale-By-The-Sea, which is the shore diving capital of the USA!

Shop with Gold Coast SCUBA and see how our integrity and quality of products makes every dive better!

Description

The new MC Series from L&W has been created for dive centers, ships, boats and places with limited space. These are suitable for continuous operation and guarantee low maintenance costs due to long service intervals.

Depending on the motor size they are fully equipped with either direct- or star /delta start systems. A super lightweight aluminum frame enables mobile applications, combined with very high filling capacity. The robust and powerful compressor block also allows being used at fully automatic stationary plants.

Specifications
  • Electro motor (Standard: 400V, 3 phase, 50Hz)
  • Powder coated lightweight aluminium frame in RAL 9006
  • Hour counter
  • Start/ Stop switch or star/delta start system
  • Emergency stop switch
  • Phase monitoring c/w shut down at wrong direction of rotation
  • Manual condensate drain
  • 2 x Filling hose c/w filling valve
  • Pressure maintaining and non return valve
  • All pistons c/w steel piston rings
  • Low pressure oil pump
  • Oil filter with bypass
  • Oil- / Water separators after 2nd and 3rd stage
  • Safety valves after each stage
  • 3 x concentric suction/pressure valves
  • Filling pressure to your choice (200 or 300 bar)
  • Connections to your choice
    (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
  • Breathing air purification an accordance to EN 12021
Options
  • Automatic condensate drain
  • Automatic stop at final pressure
  • Additional filling hoses c/w filling valves
  • Auto start system
  • Switch over device 200/300 bar
  • 200 and 300 bar parallel filling pressures
  • Oil pressure gauge
  • Oil pressure monitoring c/w auto shut down
  • Intermediate pressure gauges
  • Cylinder head temperature monitoring with auto shut down
  • Puracon filter monitoring (Auto shut down also available)
  • 1.7 l filter system (Filter capacity 900 m³ at +20°C)
  • Remote control box
  • Additional high pressure outlet
  • Wheel set
  • Power cable and plug
  • Special voltages / frequencies on request

Although products may be listed as out of stock or unavailable on the store page, please call the number below to check availability of L&W compressors and see what options are possible for shipping.

(954) 616-5909

Type: Air cooled piston compressor
Capacity [l/min] / [Nm³/h] / [cfm]: 320 / 19.2 / 11.3
Max. Pressure [bar]: 350
RPM [1/min]: 1300
No of cylinders / No of stages: 3 / 3
Prime mover type: E-Motor / 230-440V / 3 Phase / 50-60 Hz
Drive power [kW] with 50 Hz / 60 Hz: 7.5 / 9.0
Cooling air req. [m³/h] with 50 Hz / 60 Hz: 2250 / 2700
Lubrication type: Oil pump + Splash oil
Oil capacity [l] / Oil pressure [bar]: approx. 2.0 / 2.5 - 4.0 (± 0,5)
Operating temperature [°C]: +5°C to +45°C
Filter capacity [m³ at +20°C]: 900 (at +20°C)
Dimensions W x D x H [mm]: 1280 x 495 x 825
Weight [kg]: 155 - 175
Noise level (measured at 1 m) [dB(A)]: 82
